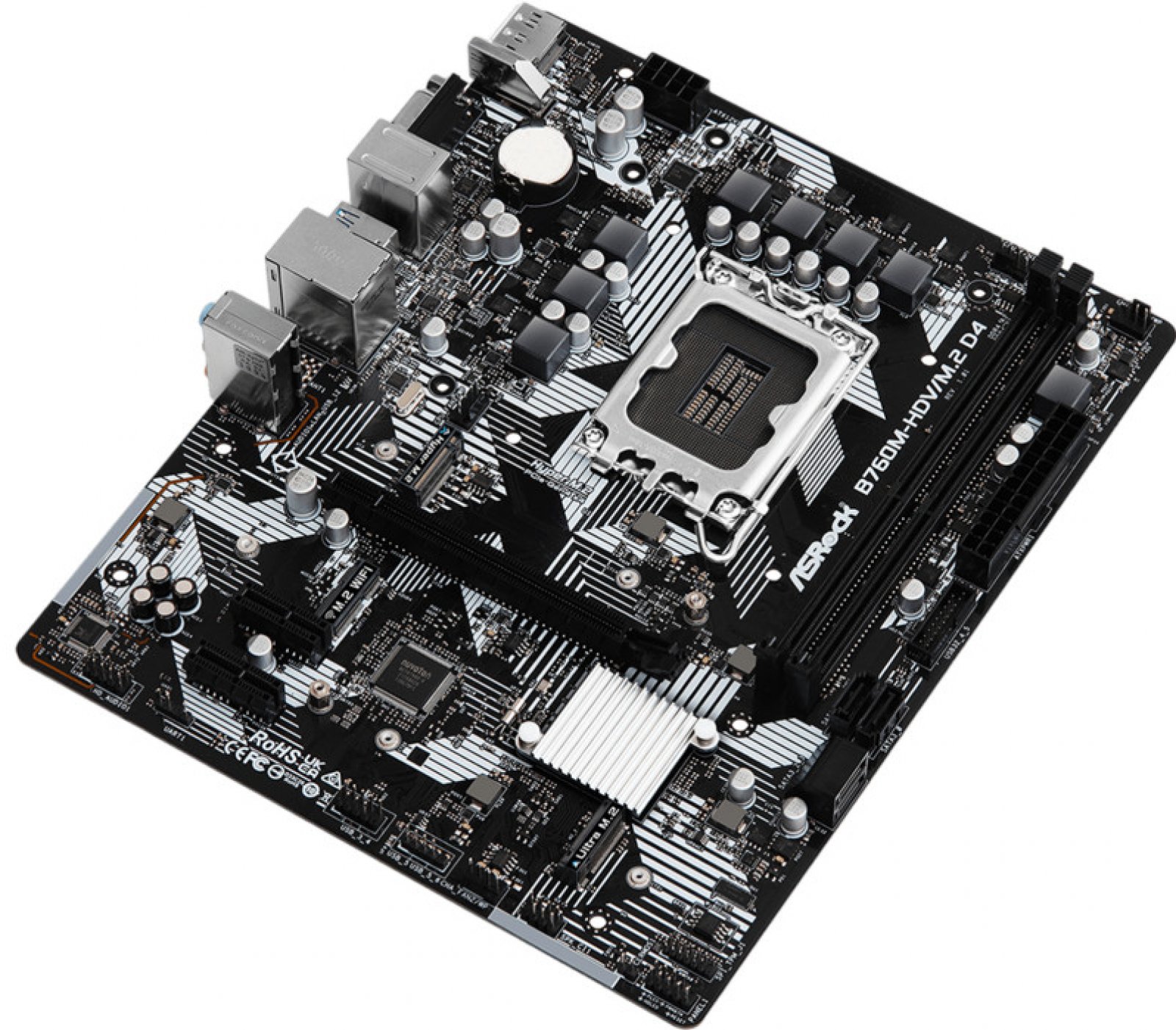

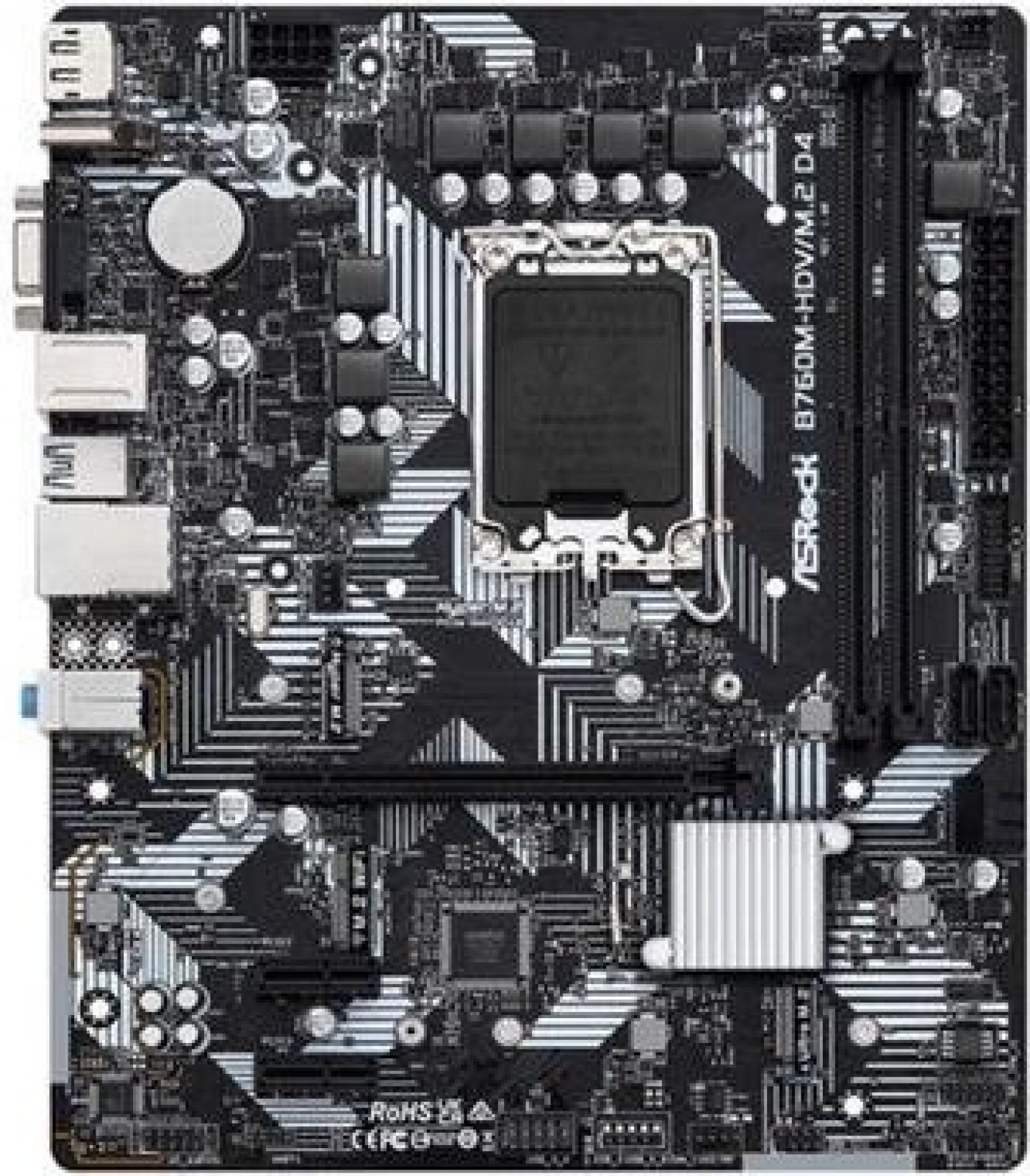

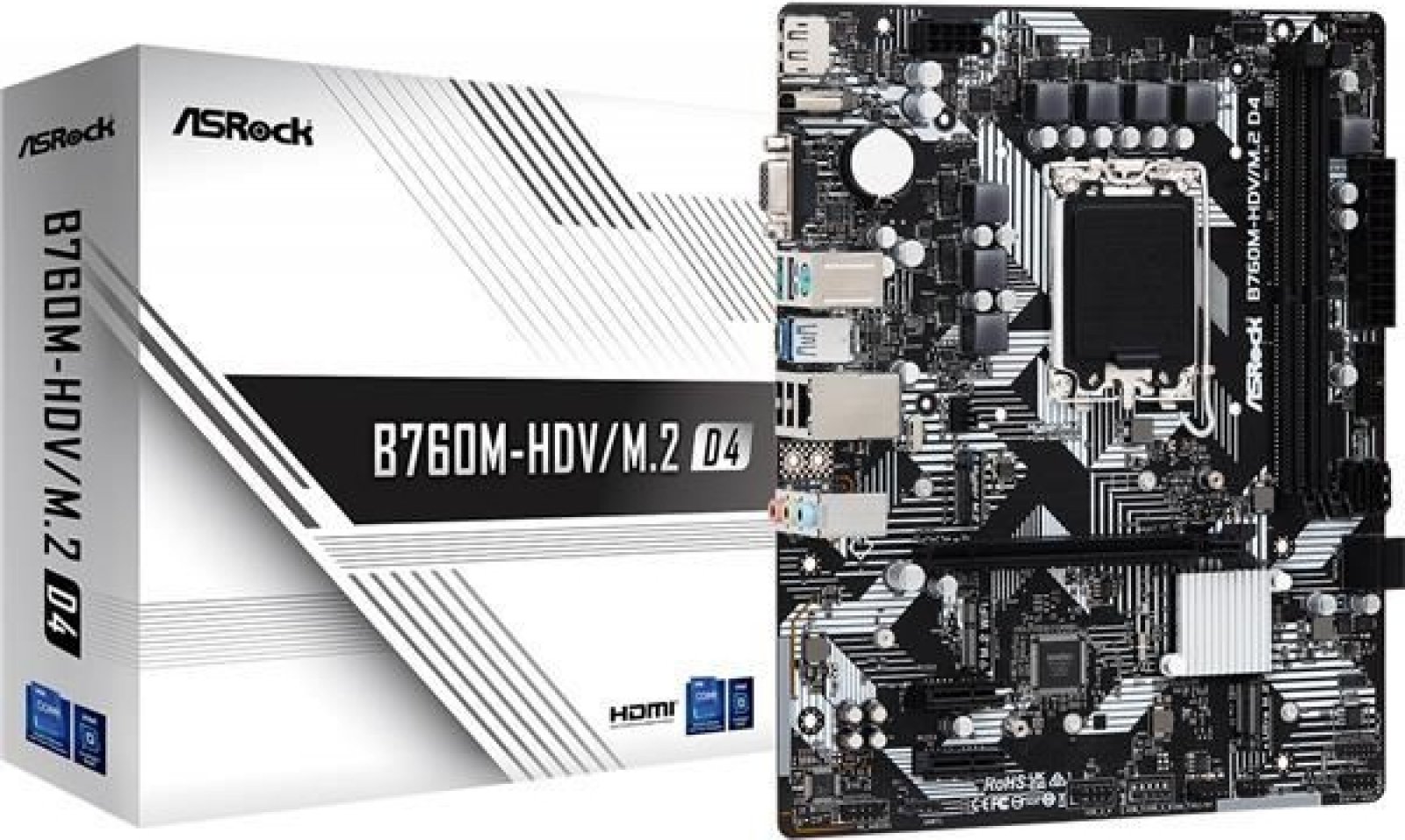

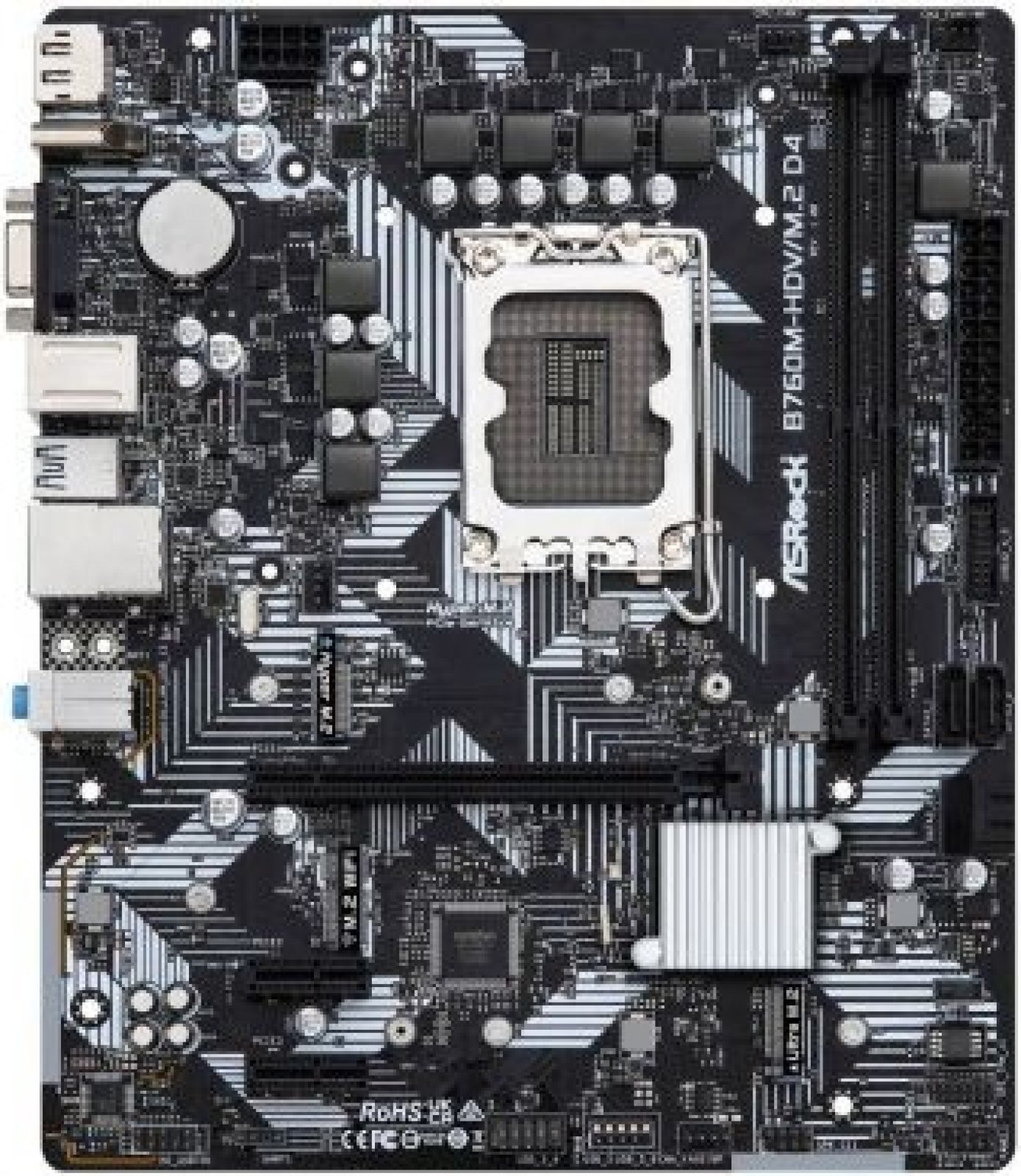

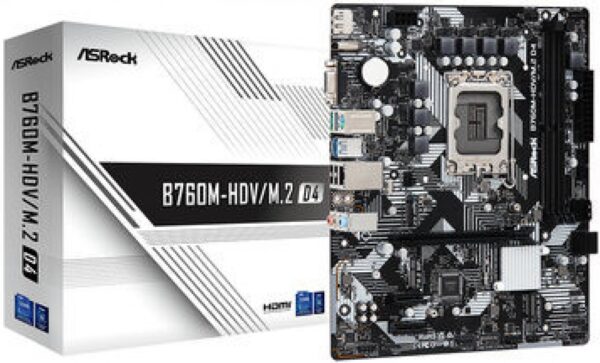

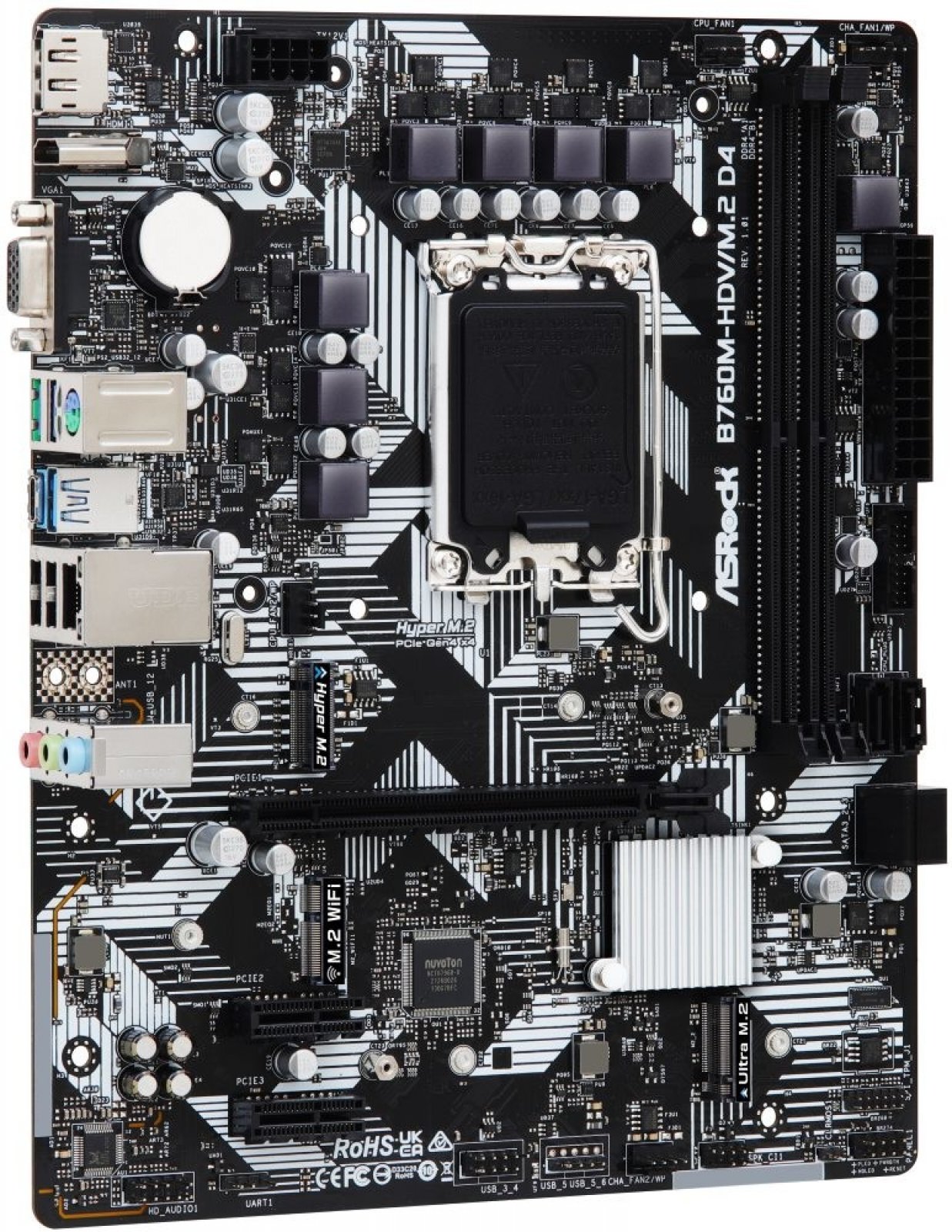

ASRock B760M-HDV/M.2 D4 – 90-MXBL40-A0UAYZ

Popis

B760M-HDV/M.2 D4

• ?Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700)
• 5+1+1 Power Phase
• Supports DDR4 5333MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC887/897 7.1 CH HD Audio Codec
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
• 1 Ultra M.2 (PCIe Gen3x4 & SATA)
• 1 USB 3.2 Gen1 Type-C (Rear),
• 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
• 5 USB 2.0 (2 Rear, 3 Front)
• Realtek 1G LAN
• Supports ASRock Auto Driver Installer

Unique Feature

Rock-Solid Durability – 5+1+1 Power Phase

EZ Update – ASRock Auto Driver Installer

CPU

• Supports 13th Gen & 12th Gen Intel Core™ Processors (LGA1700)
• Supports Intel Hybrid Technology
• Supports Intel Turbo Boost Max 3.0 Technology
• Supports Intel Thermal Velocity Boost (TVB)
• Supports Intel Adaptive Boost Technology (ABT)

Chipset – Intel B760

Memory

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 64GB*
• Supports Intel Extreme Memory Profile (XMP) 2.0

*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.

BIOS – 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Intel Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz

*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio – 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

LAN

• Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H

Slots

CPU: – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

• 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

*Supports NVMe SSD as boot disks

Storage

CPU: – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

• 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• 4 x SATA3 6.0 Gb/s Connectors**

*Supports Intel Volume Management Device (VMD)

Supports NVMe SSD as boot disks **If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 1 x USB 3.2 Gen1 Type-C (Rear)
• 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 5 x USB 2.0 (2 Rear, 3 Front)

* All USB ports support ESD Protection

Connector

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

• CPU_FAN1 supports the fan power up to 1A (12W).
• *CPU_FAN2/WP supports the fan power up to 2A (24W).
• **CHA_FAN1~2/WP support the fan power up to 2A (24W).

CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

• 2 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock XFast LAN

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

Form Factor – Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

OS – Microsoft Windows 10 64-bit / 11 64-bit

Certifications

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)
